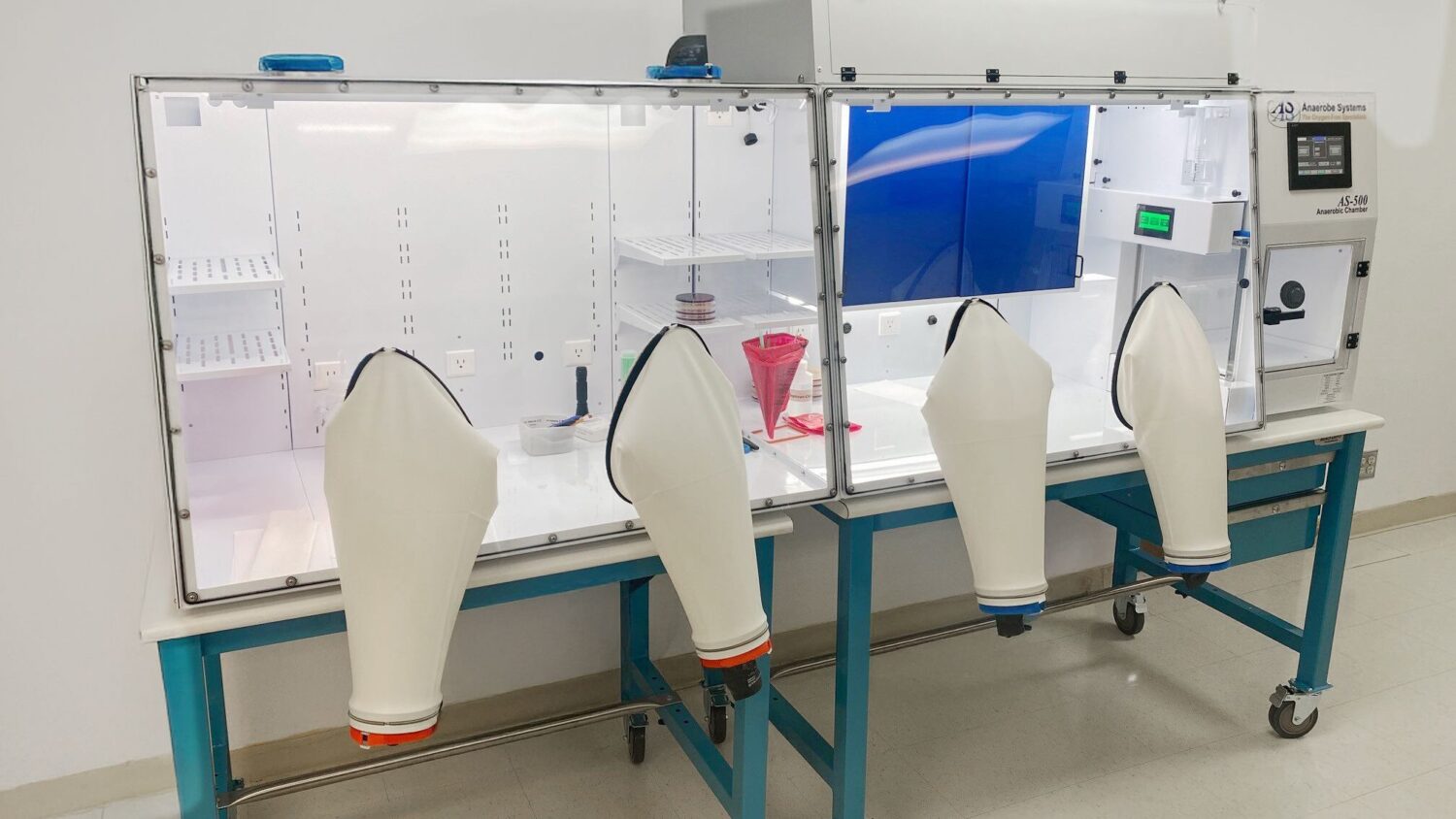

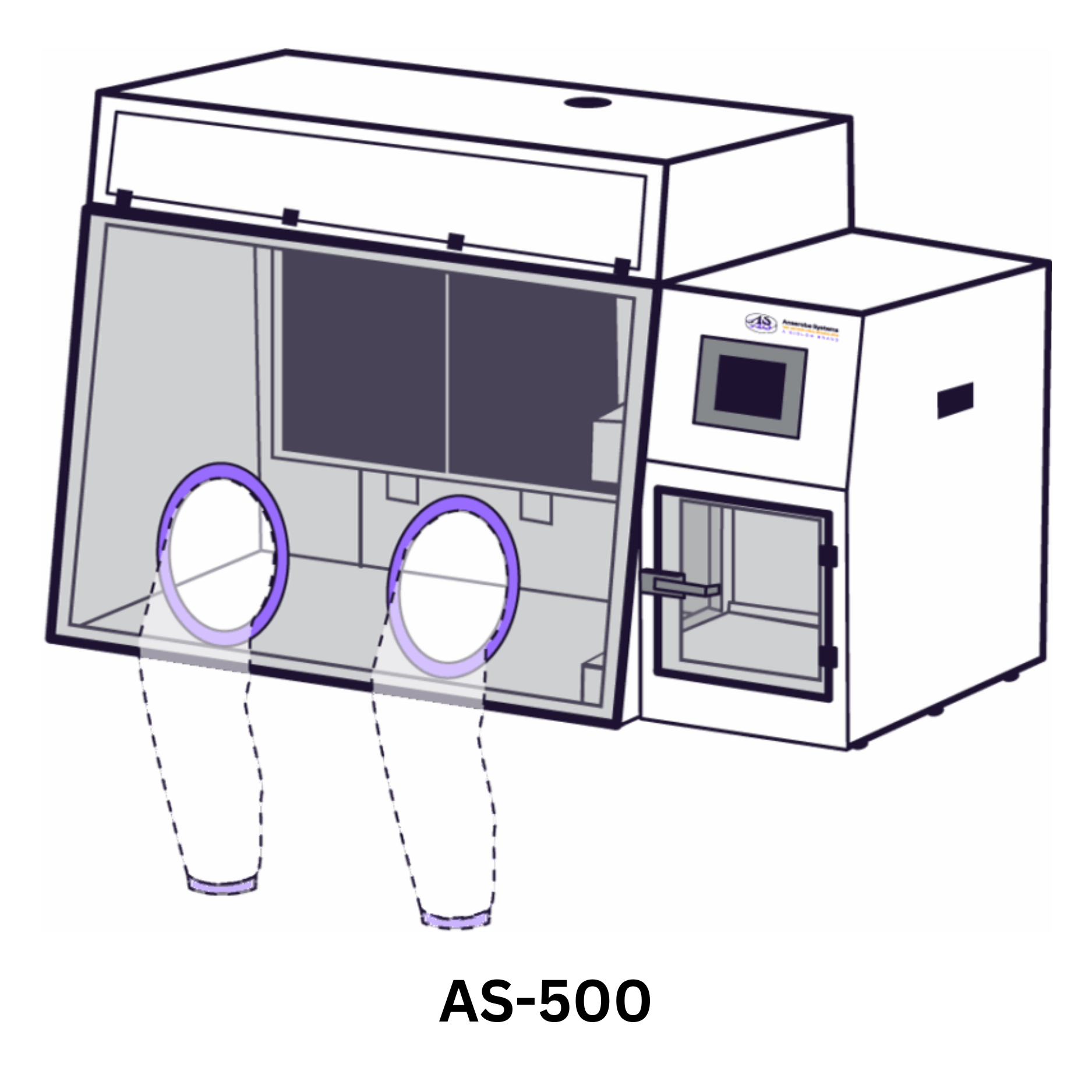

AS-500 Anaerobic Chamber

A) Touchscreen Controls - A large LCD touchscreen provides for operator interaction with the chamber to run processes and monitor chamber conditions. A smaller interior touchscreen allows the operator to start a passbox cycle from inside the chamber.

B) Airlock - Large vacuumless passbox with automatic sliding inner door and a slide-out tray runs an automatic cycle to remove oxygen, allowing you to bring supplies into the chamber. Can be configured on either side of the chamber.

C) Built-in Incubator - 500-plate capacity incubator inside the anaerobic work area keeps the rest of the workspace at room temperature. Multiple removable shelves allow for taller items to be incubated.

D) InstaSleeve™ Technology - Gloveless design improves sample handling and processing dexterity, while providing instant access to the chamber without waiting for a sleeve purge cycle. Positive pressure inside the chamber and arm seals ensure a continuous anaerobic environment with easy and comfortable access, even allowing for small items and supplies to be brought directly into the chamber. Change the sleeve cuff size as needed for different operators, while maintaining an anaerobic environment.

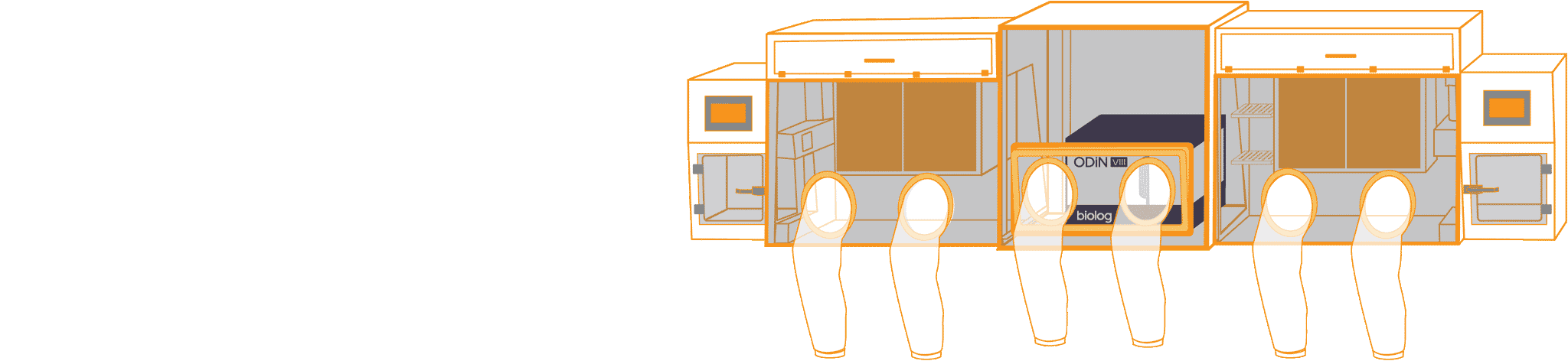

E) Modular Expansion - Additional continuous workspace can be attached to the chamber, to provide space for a second person to work in the chamber, or to accommodate additional analytical equipment. The Instrument Module adds increased floor-space and height as well as an additional armport and viewing window on the side of the chamber for increased access and visibility for larger equipment.

• Environmental Conditioning - Circulation system includes oxygen removal, HEPA filtration, hydrogen sulfide and odor removal, as well as excess humidity removal. Palladium catalyst has a built-in heater and does not need to be baked or replaced regularly.
• Lab Integration - Data and power ports allow analytical equipment to be used inside the chamber while interfacing with an external computer. An optional touchscreen computer monitor can be installed inside the chamber.
• Compact - Smaller footprint while still providing a large and versatile anaerobic work environment.
• Monitoring and Alarms - Sensors monitor a variety of chamber functions to notify you when systems are not functioning optimally, including oxygen level, gas usage, incubator temperature, gas line pressure, incubator and circulation fans, and catalyst activity.
• Ergonomic Design - Bright LED lighting, adjustable and removable shelves, and large oval arm ports all lead to efficient and comfortable work conditions inside the chamber.
• Durable - Rigid metal and plexiglass construction is easy to clean, and holds up for 15+ years.

Create your configuration!

You decide if you want the passbox on the right or left, if an expansions module is needed (up to 2 modules can be attached to each main chamber) or if you prefer to join 2 chambers together for more incubator space (up to 4 modules can be attached together between 2 chambers).

You can also add the Hypoxia Option, if interested.

Make sure to check out the TruPRAS Media options for their use inside the chamber!
