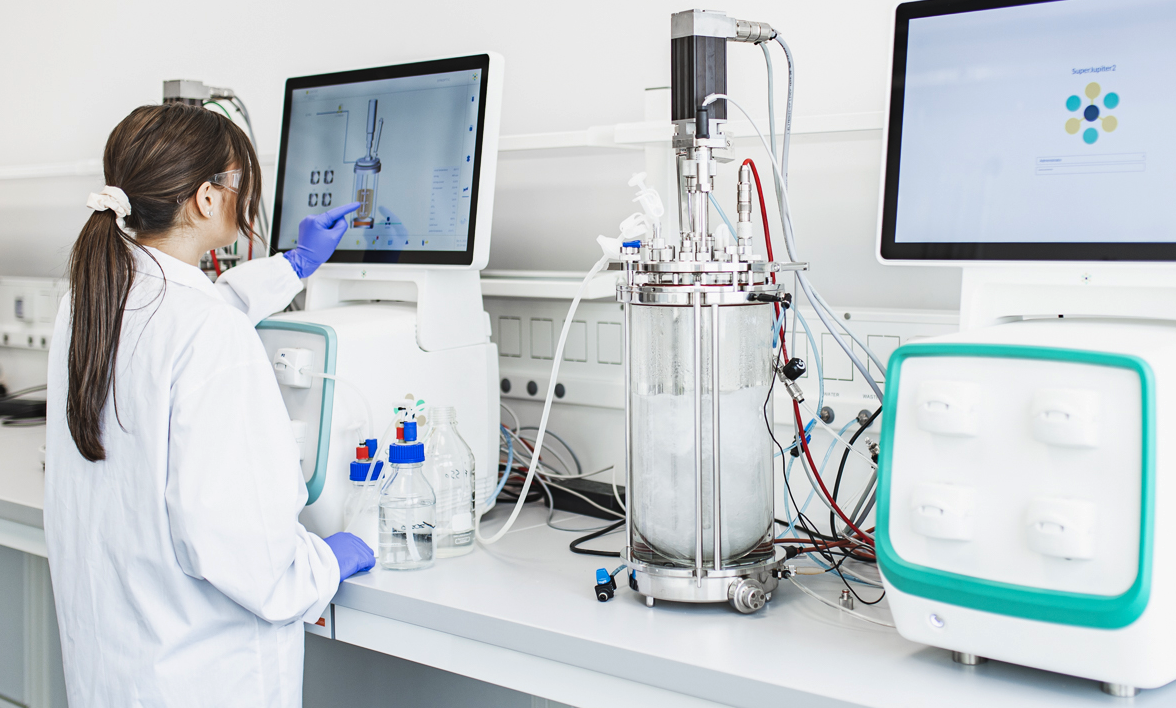

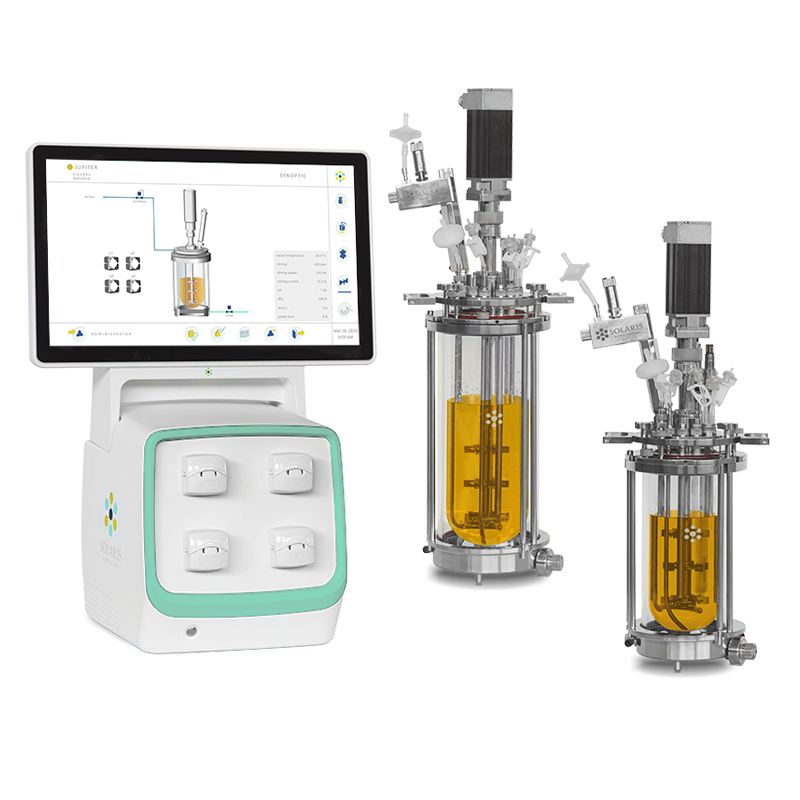

Autoclavable fermenter/bioreactor for laboratories and research. Available in single or parallel configuration.
The Jupiter platform offers multiple autoclavable vessel sizes and designs from 2.0 L up to 10.0 L total volume. The system is highly configurable, offering a wide range of measurement and control options. Pressure control up to 1.6 bar is also available in the 2 and 4 L volumes.
Features and benefits
1. 4 different volumes (2 L, 4 L, 6.5 L, 10 L) and 2 different ratios H/D.
2. Double borosilicate glass vessel designs available for all volumes.

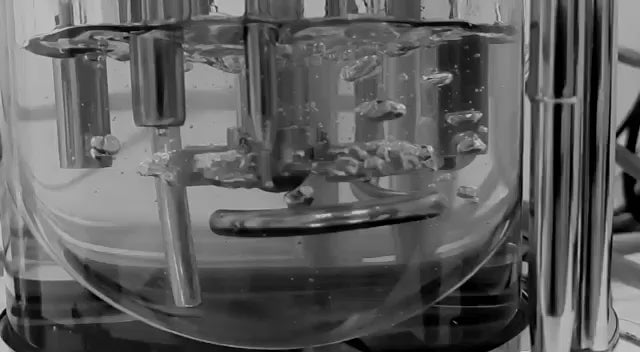

3. Microbial (Toro sparger, Rushton impellers, baffles) and cell cultures (Sintered sparger, Marine impellers, baffles caps) configurations available.
4. Wide range of measurement and control options, including temperature, pH, dO2 , dCO2 , redox, antifoam, level, conductivity, weight, cell density (total cells, viable cells).
5. Modbus digital sensors reduce background noise and guarantee quick response time.
6. Suitable for batch, fed-batch and continuous processes.

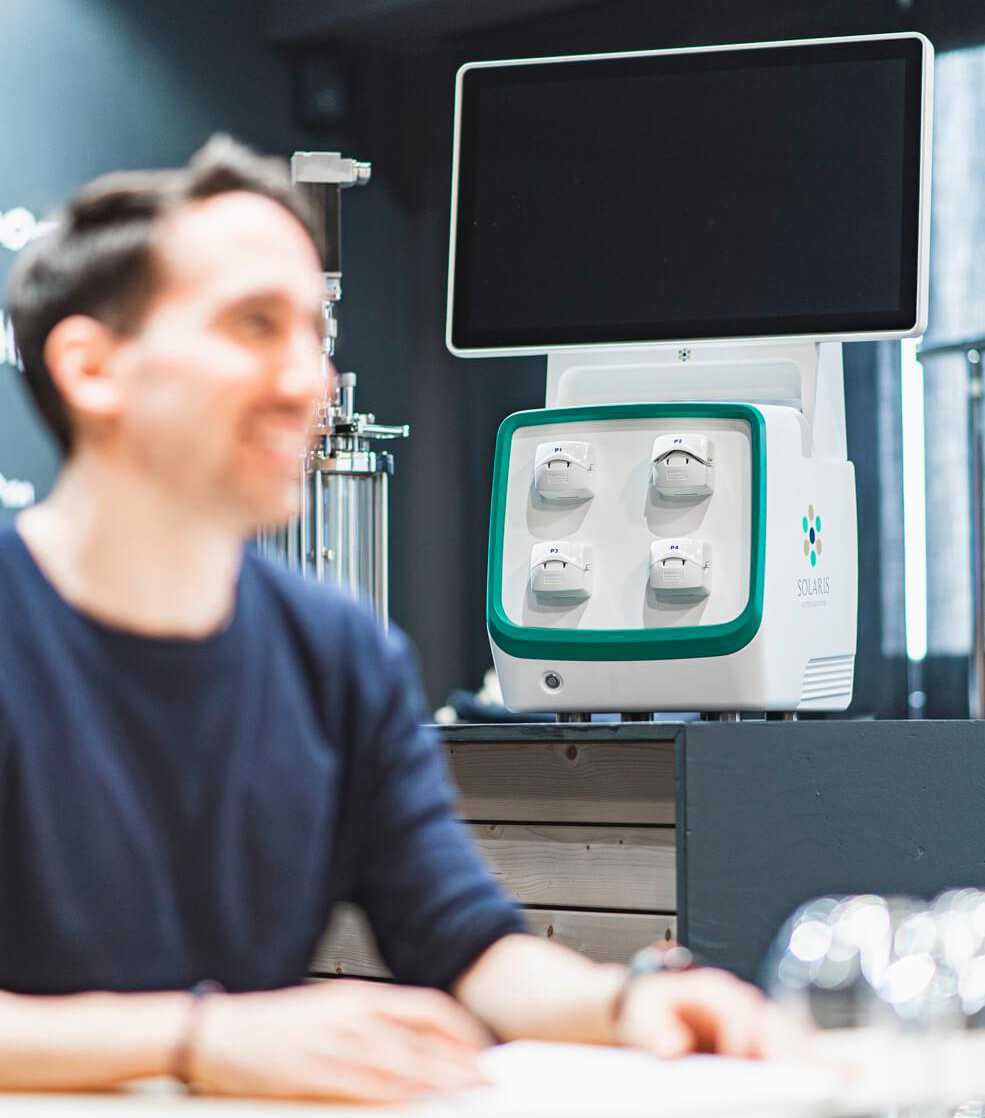

7. LEM01, the PLC-based control system supplied with the unit, integrates 4 fixed or variable speed peristaltic pumps.
8. Powerful and accurate (1 RPM) brushless motor.
9. Optional integration of up to 4 analog input/output connections, choosing between 0-10 V and 0-20 mA/4-20 mA (e.g. pumps or valves with power supply independent from Solaris electrical cabinet)
10. Different gas mixing strategies with up to 5 TMFC.
11. Termoregulation: fully removable and cleanable glass jacket for improved heat transfer during autoclaving.
12. LEDA: the innovative sterile sampling system for Solaris’ autoclavable fermenters/bioreactors, which allows up to 180 sterile samplings per batch.
13. Pressure control up to 1.6 bar (with constant gas-in and gas-out flux) available in the 2 and 4 L volumes.
14. JUPITER can be equipped with circulation chillers and the thermobox, a thermoregulation station.
Software

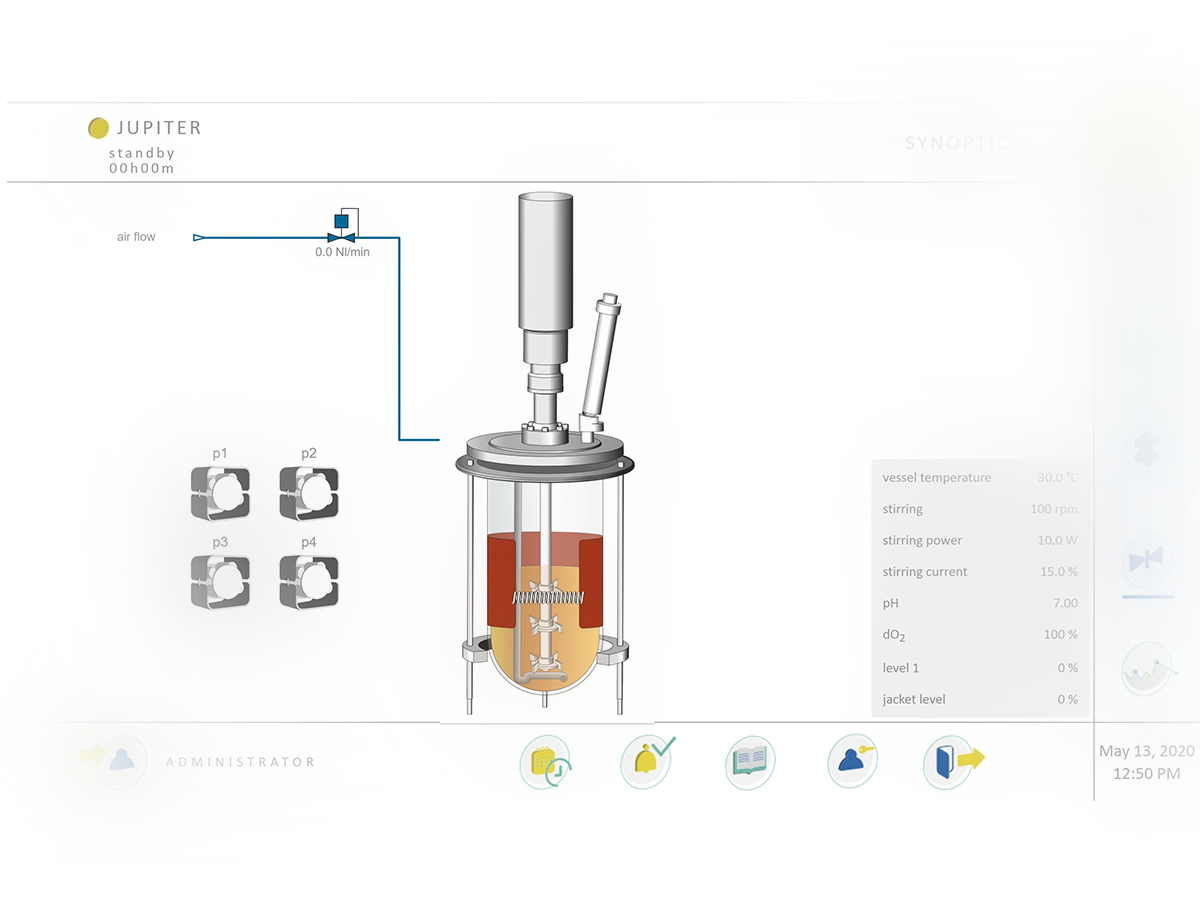

- Innovative SCADA software LEONARDO: a smart and user-friendly controller designed to provide a high level of automated management of the fermentation/cultivation processes.
- Full version included in the equipment supply.
- Up to 24 units managed in parallel with a unique HMI (24”).
- Data extraction in .csv format.
- Remote access via PC, tablet or smartphone, with QR code scanning or dedicated portal.
- Remote control for after sale assistance.
The Jupiter Pressure, with the same configuration, control options and parameters as the standard one, gives the ability to run bioprocesses at higher pressure conditions mimicking scale-up conditions.
The system is highly configurable, offering a wide range of measurement and control options.
- Pressure control up to 1.6 bar (with constant gas-in and gas-out flux) controlled from software
- Vessel dimensions available in 2 and 4 litres total volumes with double-wall design
- Suitable for batch, fed-batch and continuous processes and parallel control up to 24 units
Increase your process control and speed up the scale-up of your bioprocess with JUPITER PRESSURE.
Solaris JUPITER Applications:
Can be used for:
- Basic research
- Education
- Process development and optimization
- Scale-up and scale-down studies
- Scale up and Small production
