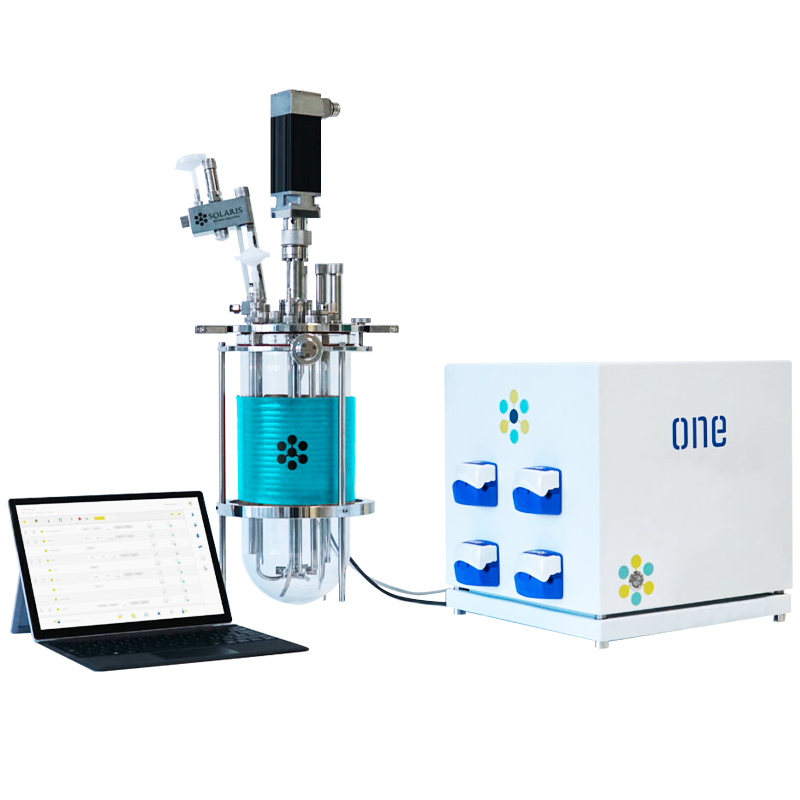

Benchtop stirred fermenter/bioreactor.
Integrated Wi-Fi connection. Fully automated solution. Accurate stirring, temperature, pH and oxygen controls. Precise feedings via peristaltic pumps.
Features and benefits
1. 2.0 L geometrical volume, H/D ratio 3:1.
2. Microbial (Toro sparger, Rushton impellers, baffles) and cell cultures (Sintered sparger, Marine impellers, baffles caps) configurations available.
3. Single-wall borosilicate glass vessel, with thermoregulation performed through heating blanket and cooling finger.
4. Measurements and controls included in the supply: stirring, temperature, pH, dO2.
5. Accurate gas mixing via dedicated TMFC for Air (automatic software control).

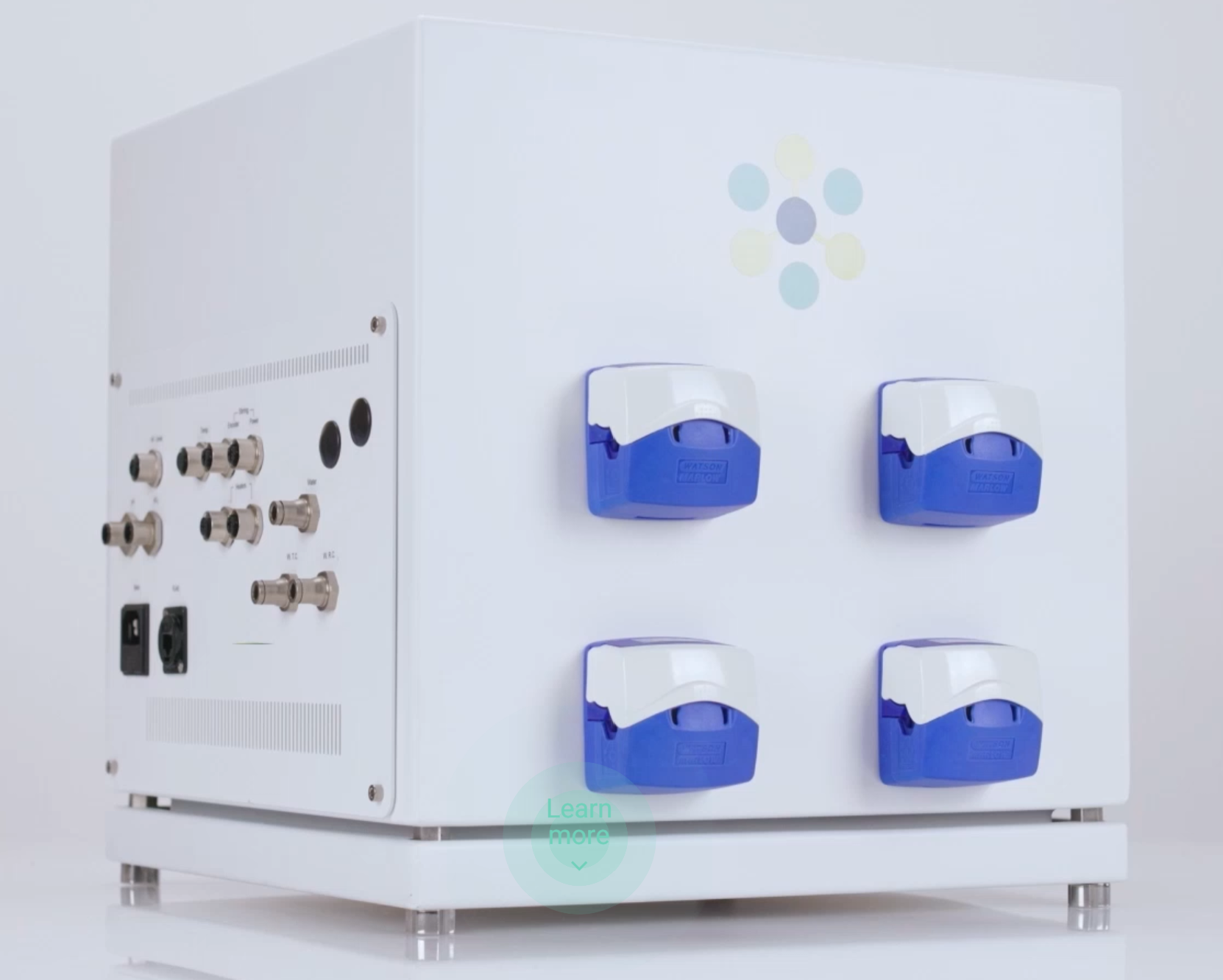

6. Compact stainless-steel cube PCS equipped with 4 fixed speed peristaltic pumps.
7. Powerful and accurate (1 RPM) brushless motor.
8. Connectivity and data exchange via in-built Wi-Fi system.
9. Innovative SCADA software LEONARDO: a smart and user-friendly controller designed to provide a high level of automated management of the fermentation/cultivation processes.
10. Multiple use available up to 24 units managed in parallel
11. New innovative sustainable packaging.
12. ONE can be equipped with circulation chillers and the LEDA sterile sampling system as bioreactor accessories.
Software
- Innovative SCADA software LEONARDO: a smart and user-friendly controller designed to provide a high level of automated management of the fermentation/cultivation processes.
- Workflow

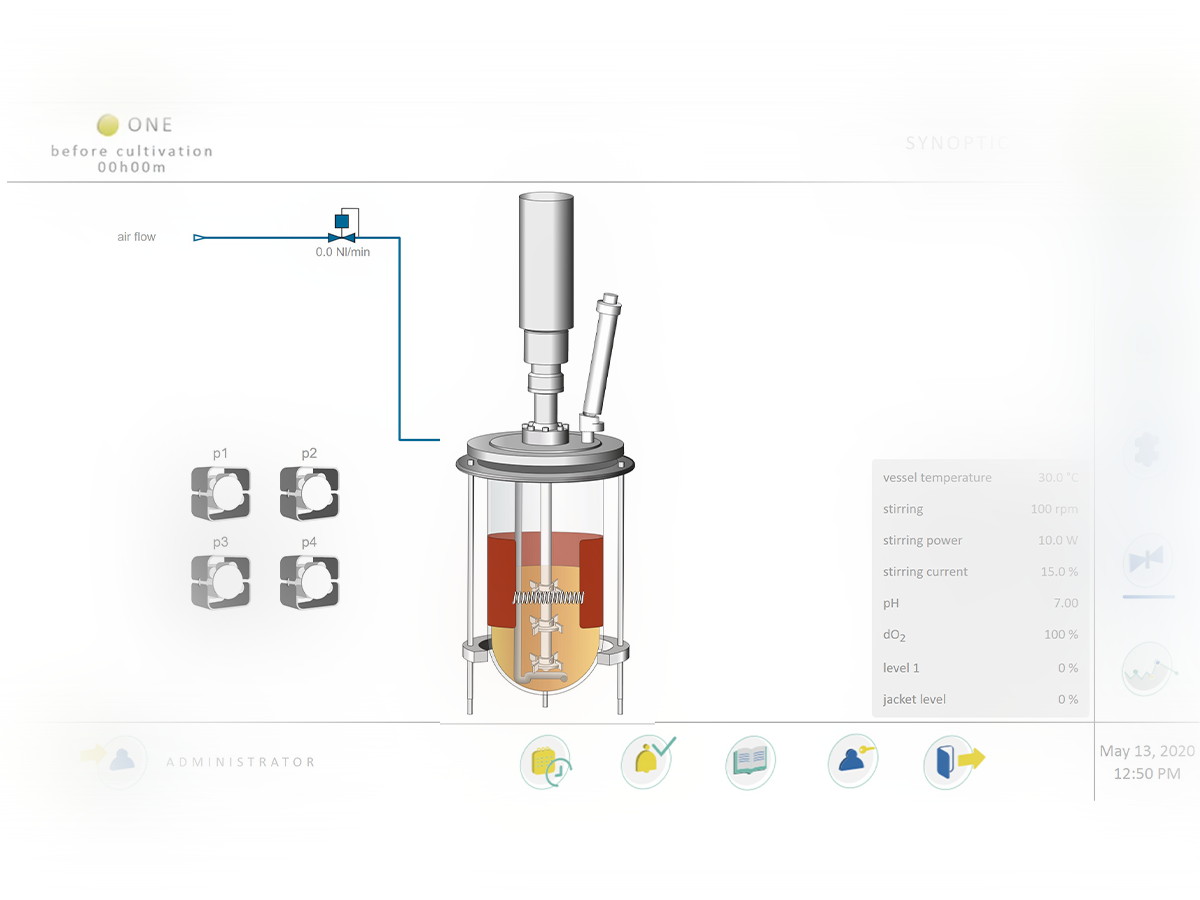

- Synoptic
- Calibration
- Trends
Solaris ONE Applications
Can be used for:
- Basic research
- Education
- Process development and optimization
- Scale-up and scale-down studies
- Scale up and Small production
