Single and Parallel Standard SIP Fermenter/Bioreactor.

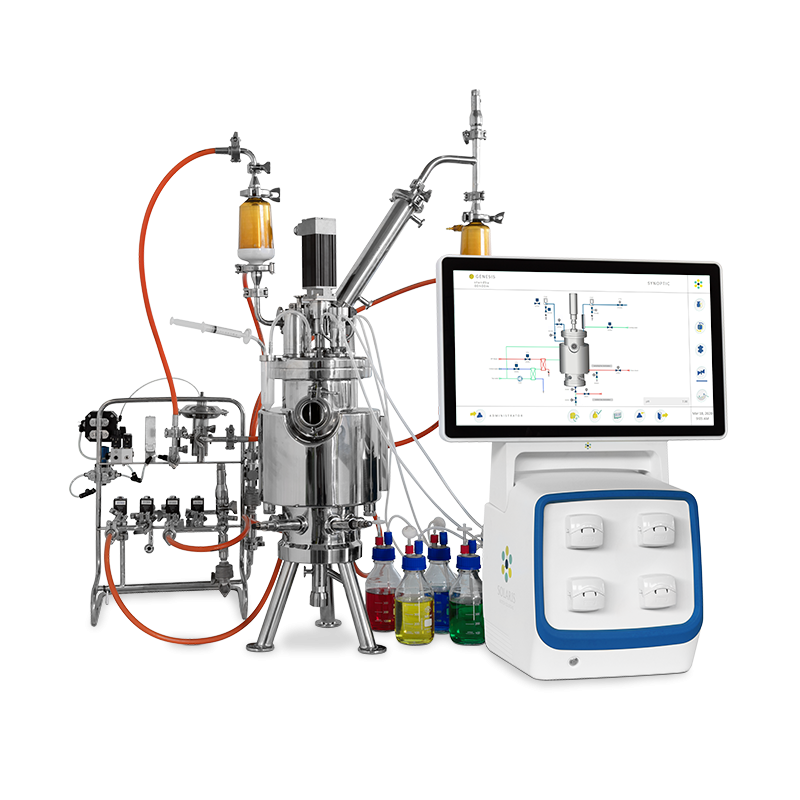

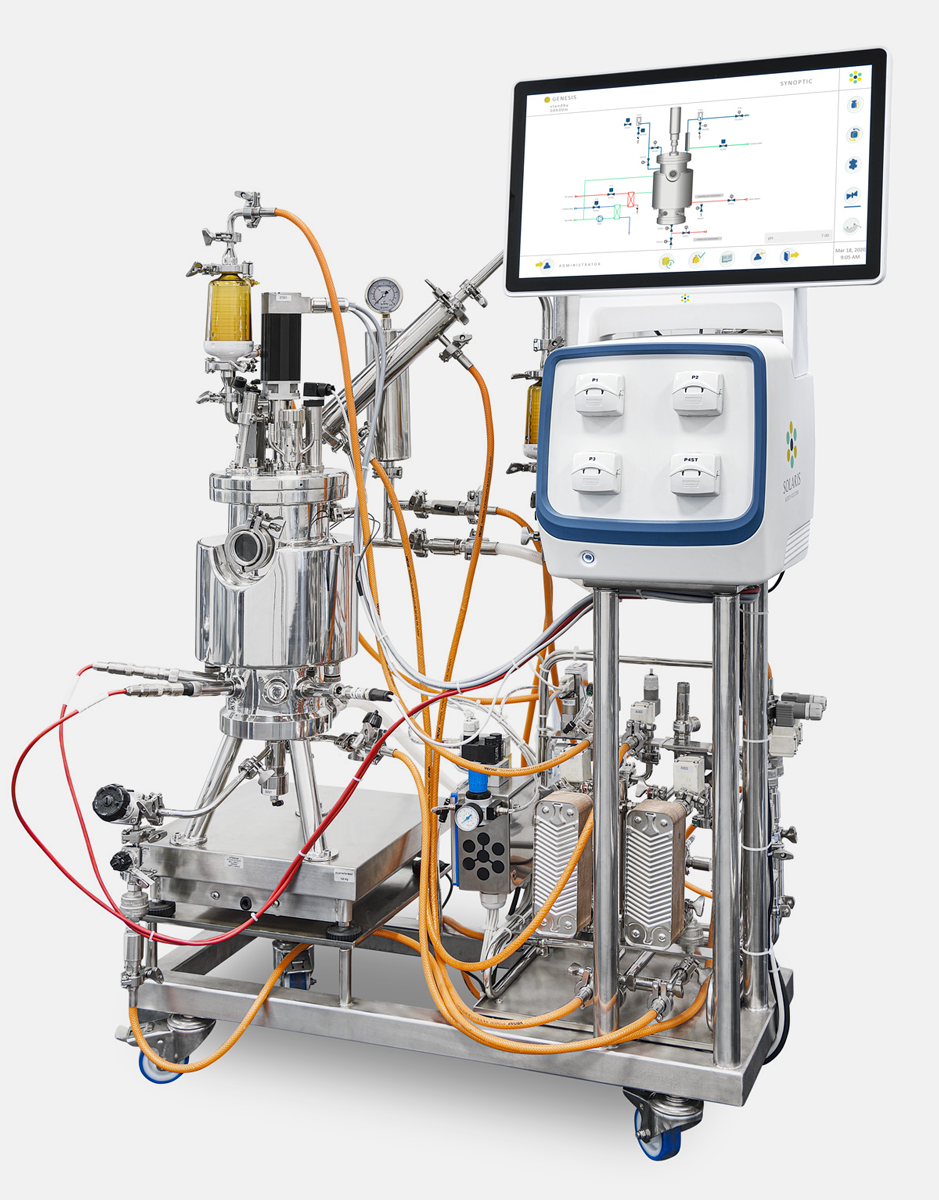

GENESIS is a compact benchtop SIP fermenter/bioreactor, available from 7.5 up to 20 L total volume.
Features and benefits
1. 4 different volumes (7.5 L, 10 L, 15 L, 20L), 2.5: 1 H/D ratio.
2. AISI 316L vessel.
3. Sterilization with steam, electrical heaters or a combination of both.
4. Double jacket (side-bottom) for greater heat transfer efficiency and optimal temperature control.
5. Microbial (Toro sparger, Rushton impellers, baffles) and cell cultures (Sintered sparger, Marine impellers, baffles caps) configurations available.
6. Wide range of measurement and control options, including temperature, pH, dO 2 , dCO 2 , redox, antifoam, level, conductivity, weight, cell density (total cells, viable cells).
7. Modbus digital sensors reduce background noise and guarantee quick response time.
8. Suitable for batch, fed-batch and continuous processes.
9. LEM01, the PLC-based control system supplied with the unit, integrates 4 fixed or variable speed peristaltic pumps.
10. Powerful and accurate (1 RPM) brushless motor.
11. Optional integration of up to 4 analog input/output connections, choosing between 0-10 V and 0-20 mA/4-20 mA (e.g. pumps or valves with power supply independent from Solaris electrical cabinet)
12. Different gas mixing strategies with up to 5 TMFC and/or solenoid valves.
13. SALAS (Solaris Sterile Liquid Addition System) included in the standard configuration.
14. The thermoregulation and aeration loops are external from the PCS, on a dedicated support with a combination of stainless-steel and flexible tubing.
15. Illuminated sight glass on the vessel lid, and circular sight glass on vessel side.
16. GENESIS can be equipped with circulation chillers and the thermobox, a thermoregulation station as bioreactor accessories.
Software

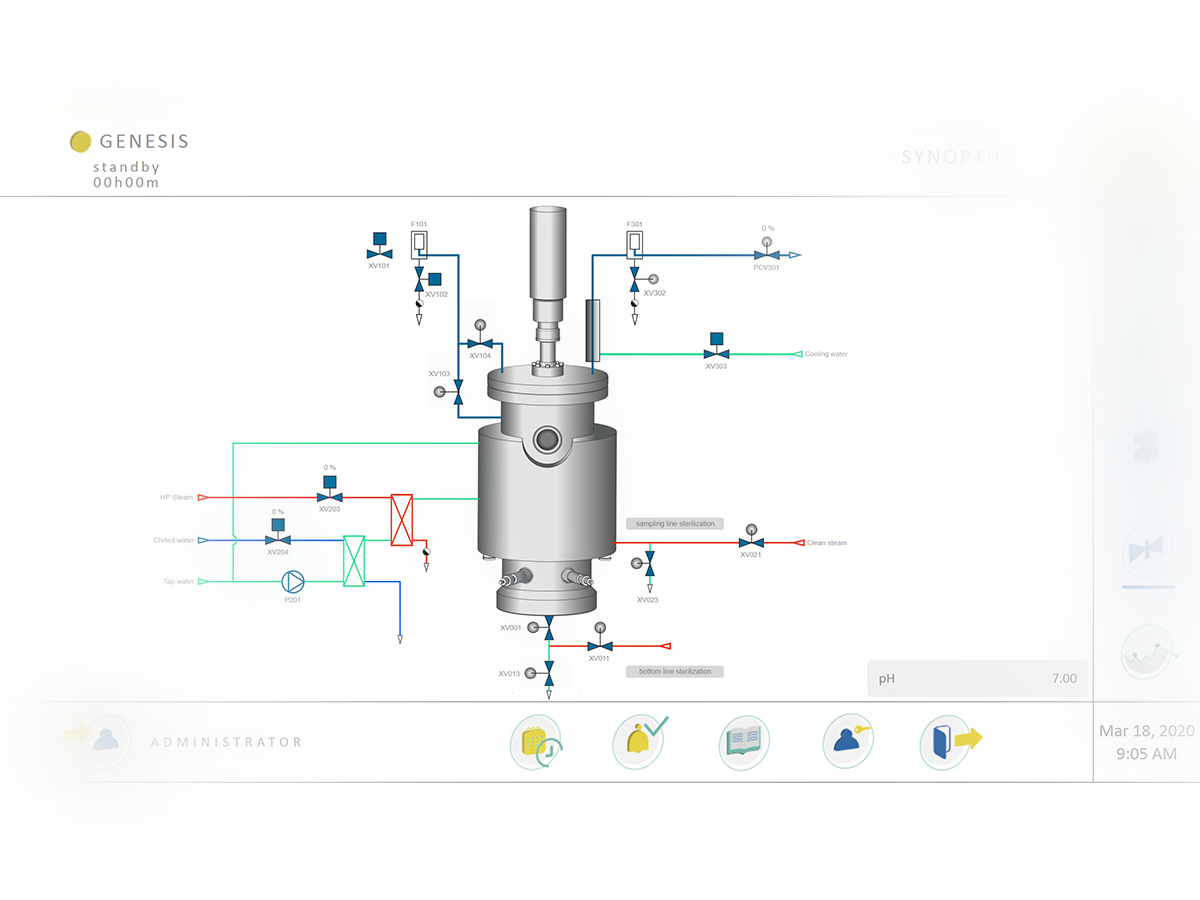

- Innovative SCADA software LEONARDO 3.0: a smart and user-friendly controller designed to provide a high level of automated management of the fermentation/cultivation processes.
- Full version included in the equipment supply.
- Up to 24 units managed in parallel with a unique HMI (24”).
- Data extraction in .csv format.
- Remote access via PC, tablet or smartphone, with QR code scanning or dedicated portal.
- Remote control for after sale assistance.
Solaris GENESIS Applications
Can be used for:
- Basic research
- Process development and optimization
- Scale-up and scale-down studies
- Scale up and Small production
